transverse suspension of the sweeping segment – lateral ground adjustment
hydraulic drive with an extremely powerful planetary hydraulic motor integrated in the sweeping roller for protection against damage
powered directly from the hydraulics of the carrying vehicle
sweeping roller diameter ø 640 mm, spirally positioned brushes, more aggressive cleaning, longer service life
brushes on the sweeping roller: PPN-, PPN- + steel ; (PPN – polypropylene)
individually adjustable pressure of the sweeping roller on the ground with continuous adjustment
caster wheels with elastic vulcanised rubber tyre
support legs
transport eye bolts
hydraulic hoses with quick couplings
lateral marking flags
the min. required flow rate of the pump on the carrying vehicle is 40 l/min
Additional Equipment
quick release mounting plate (utility plate), size 3 (DIN 76060, shape B) or size 5 (DIN 76060, shape A/B)

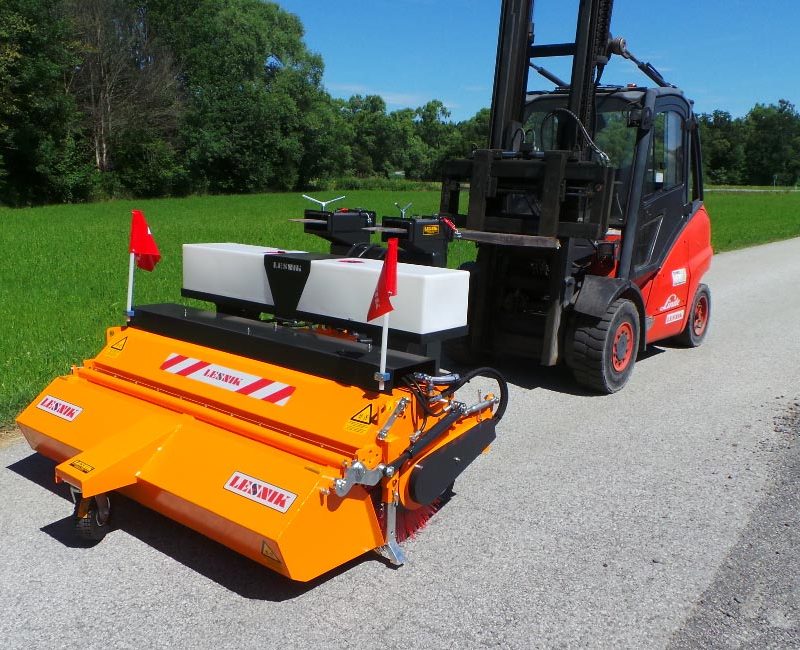

forklift attachment
loading system attachment
Cat. 2 three-point hitch
lateral sweeping brush with a diameter of ø 620 mm, adjustable, foldable and protected against lateral impacts with a spline cylinder
collection bin with a sensing wheel and hydraulic dumping
moistening system with spray nozzles, hoses and fittings
electric water pump
water tank
outline marker lamps with consoles
