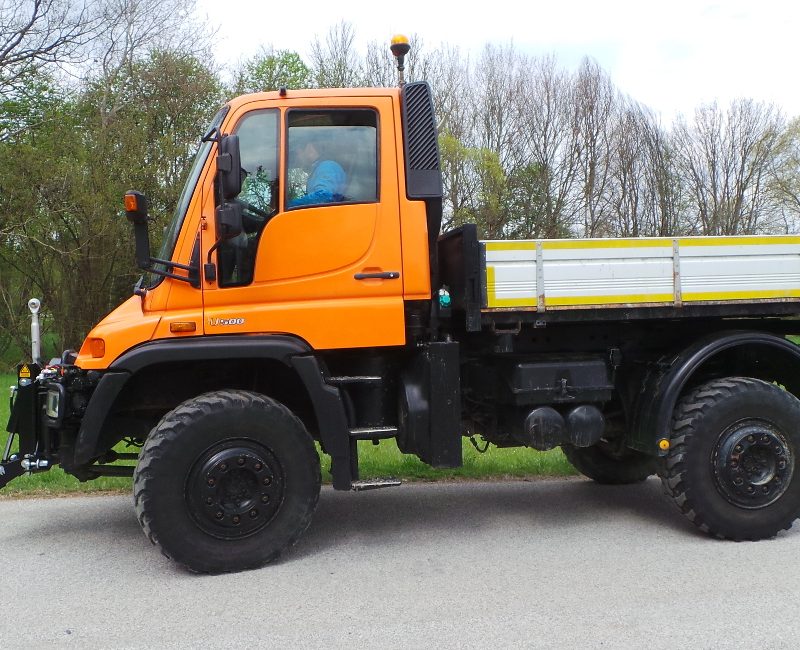

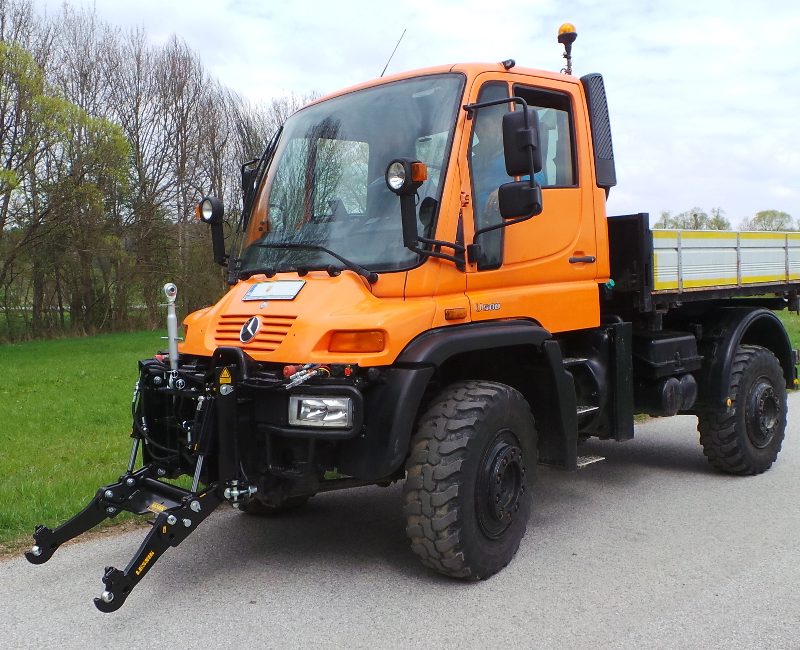

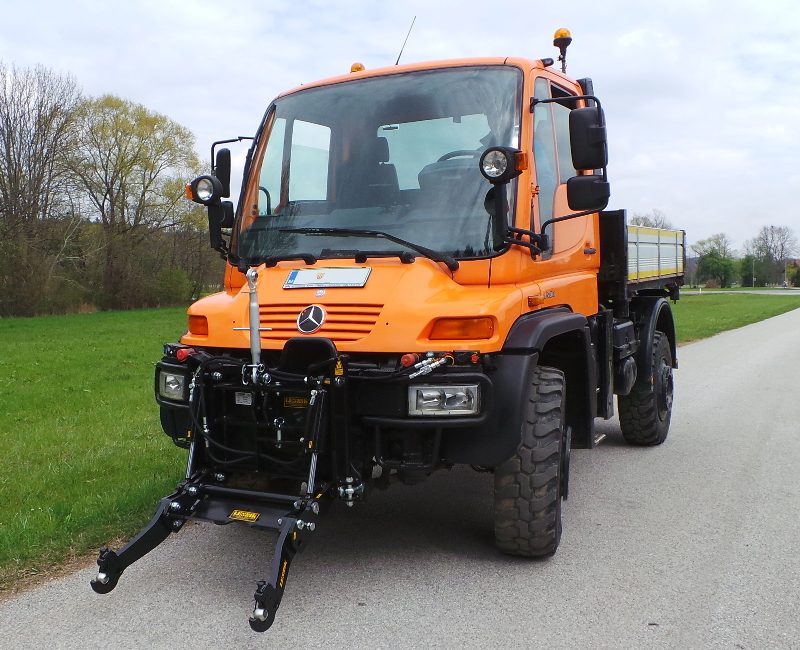

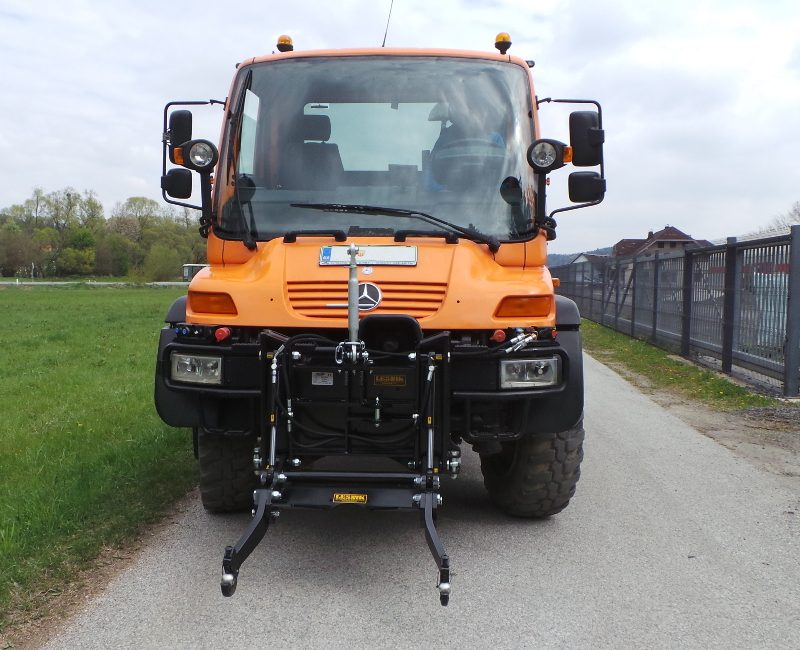

Front linkage SHL PU for Unimog and MB-Trac

SHL PU

Front linkage SHL PU for Unimog, MB-Trac and Lindner Unitrac with euro utility plate size 3

Models

Type
Lift capacity
Cat. - width
For Unimogs
SHL PU26-B3
26 kN (2600 kg)
Cat.2
to 150 hp
SHL PU26-A5
26 kN (2600 kg)
Cat.2
to 150 hp
SHL PU36-B3
36 kN (3600 kg)
Cat.2
to 240 hp
SHL PU36-A5
36 kN (3600 kg)
Cat.2
to 240 hp

Equipment

Standard equipment

  • detachable 3 point linkage for an euro utility attachment plate size 3 or size 3/5(DIN 76060 form A, B)
  • 3 point linkage suitable for all Unimog types with an existing quick release utility plate
  • with standard fixing points
  • robust structural design
  • top quality – only the highest quality components installed

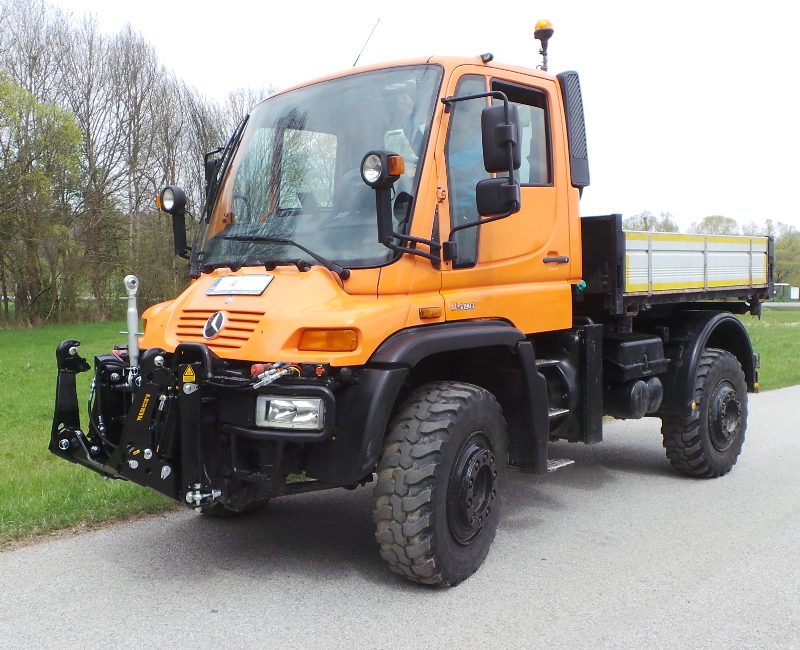

  • foldable and removable lift arms (transport position)
  • bilaterally fastened suspended lift arms, which can be fixed – floating or fixed position
  • double-acting hydraulic cylinders
  • hardened ball joints on both cylinders
  • width Cat.2
  • 3 point linkage with Walterscheid quick hitch weld on hooks Cat. 2
  • drawbar eye
  • holder for top link (central lever)
  • hydraulic hoses with quick couplings and a shut-off valve in the lifting pipe
  • Paint RAL 7021 (dark grey) or on customer request
  • Empty weight: 212kg

Additional Equipment

  • Walterscheid lower link quick hitch weld on hooks Cat.3L
  • hydraulic accumulator (oscillation damper) – protects the tractor with a heavy-duty attachment from shocks (oscillations) due to uneven roads
  • Top link (central lever) Cat.2
