Universal front hitch – universal front linkage SHL S

Domov » Front linkage » Universal front hitch – universal front linkage SHL S

SHL S

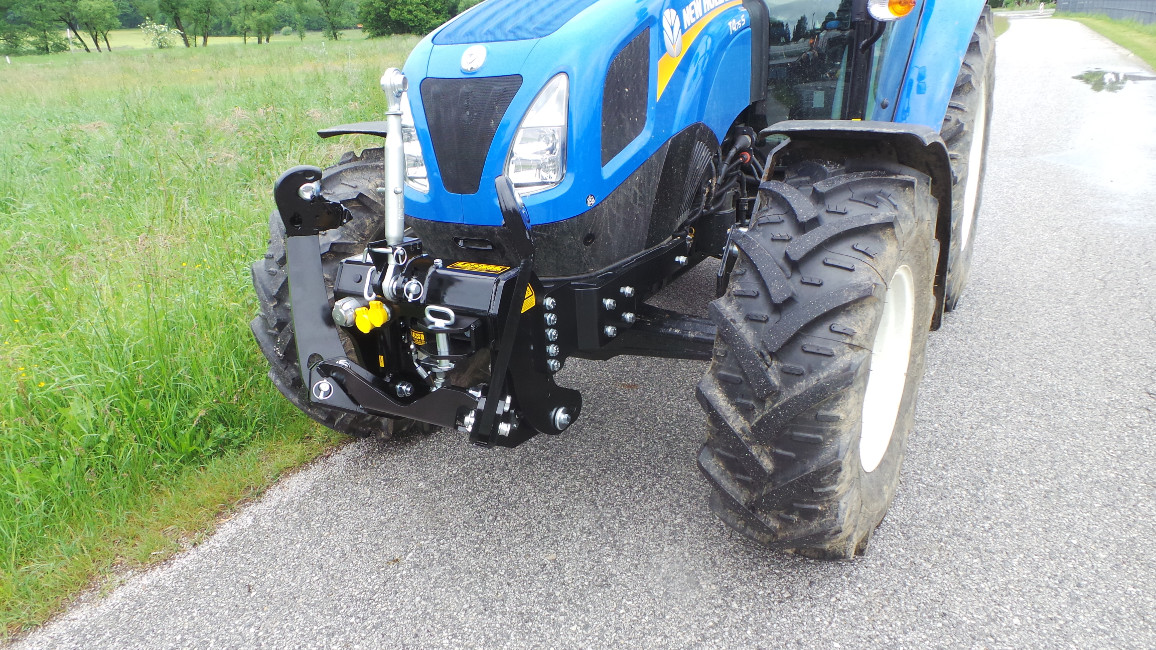

Universal front hitch SHL S for self-installation without lateral mounting brackets!

Models

Type

Lift capacity

Cat. - width

For tractors

SHL S35

35 kN (3500 kg)

Cat.2

to 230 hp

SHL S25

25 kN (2500 kg)

Cat.2

to 130 hp

SHL S17

17 kN (1700 kg)

Cat.2

to 80 hp

SHL S8

8 kN (800 kg)

Cat.1

to 55 hp

SHL S8

Standard equipment SHL S8

universal front hitch for SELF-INSTALLATION without lateral mounting brackets
professional front hitch suitable for small tractors from 25 to 55 hp.
Walterscheid quick hitch hooks Cat. 1
width Cat.1 on lift arms or on request Cat.0
robust structure
modern design
top quality – only the highest quality components installed
Mounting – internal width: 310 mm
Mounting – external width: 334 mm
foldable and removable lift arms (transport position)
lift arms are folded backwards
bilaterally fastened suspended lift arms, which can be fixed – floating or fixed position
double-acting hydraulic cylinders
hardened ball joints on both cylinders
all bearings and pivot points can be lubricated
drawbar eye
holder for top link (central lever)
additional holes for connection under the tractor chassis
600 mm long hydraulic hoses with quick couplings and a shut-off valve in the lifting pipe
Paint RAL 7021(dark grey) or on customer request
Empty weight: 70kg

Additional Equipment SHL S8

lift arms for the category of width 0(lower link width Cat.0 on the lower link hooks) with Walterscheid lower link hooks Cat.1
Accumulators(damper) -protects the tractor with heavy attachment from shocks by bumps
Universal brackets for self-assembly of the front linkage

Scope of delivery SHL S8

A – universal front hitch SHL S8 with Walterscheid quick hitch hooks Cat.1
B – top link Cat.1
C – original Walterscheid catch balls Cat.1
D – straight screw-on attachments 12-L for hose extension
E – two (2) front quick couplings with plastic caps without hydraulic hoses

Sketch SHL S8

Universal brackets

Length L

L = 150 mm
L = 600 mm
L = 1000 mm

ERO console

Intermediate adapter plate for SHL S8

Distance plates for universal brackets SHL S8

To balance the width of the tractor to the front linkage.

Thicknesses t= 5 and 10 mm
Distance plates A: dim.: 5x48x160 mm, holes, sandblasted, painted, 2 pcs/set
Distance plates B: dim.:10x48x160 mm, holes, sandblasted, painted, 2 pcs/set

SHL S17 and S25

Standard equipment SHL S17 and S25

universal front hitch for SELF-INSTALLATION without lateral mounting brackets
professional front hydraulic linkage suitable for all standard tractors
Walterscheid quick hitch hooks Cat. 2
width Cat. 2 category on lift arms
robust structure
modern design
top quality – only the highest quality components installed
Mounting – internal width: 465 mm
Mounting – external width: 505 mm
foldable and removable lift arms (transport position)
lift arms are folded obliquely inwards
bilaterally fastened suspended lift arms, which can be fixed – floating or fixed position
double-acting hydraulic cylinders
hardened ball joints on both cylinders
all bearings and pivot points can be lubricated
drawbar eye
holder for top link (central lever)
additional holes for connection under the tractor chassis
1100 mm long hydraulic hoses with quick couplings and a shut-off valve in the lifting pipe
Paint RAL 7021(dark grey) or on customer request
Empty weight: 147kg

Additional Equipment SHL S17 and S25

Walterscheid lower link hooks(quick coupler) Cat.1 or Cat.3L
Double-acting hydraulic connections front(two hoses with quick couplers integrated in cross-bracket)
lift arms for the category of width 1(lower link width Cat.1 on the lower link hooks) with Walterscheid lower link hooks Cat.1 or Cat.2
Accumulators(damper) -protects the tractor with heavy attachment from shocks by bumps
Universal brackets for self-assembly of the front linkage
7-pin socket (12V)

Scope of delivery SHL S17 and S25

A – universal front hydraulic linkage SHL S25 with Walterscheid quick hitch hooks Cat 2
B – top link Cat 2
C – original Walterscheid catch balls Cat 2
D – straight screw-on attachments 12-L for hose extension
E – 7-pin aluminium electric socket without wiring
F – two (2) front quick couplings with plastic caps without hydraulic hoses

Sketch SHL S17 and S25

Universal brackets

Length L

L = 200 mm
L = 500 mm
L = 750 mm
L = 1000 mm
L = 1200 mm
L = 1400 mm
L = 1600 mm
L = 1800 mm
L = 2000 mm

Distance plates for universal brackets SHL S17 and SHL S25

To balance the width of the tractor to the front linkage.

Thicknesses t= 5 and 10 mm
Distance plates A: dim.: 5x55x210 mm, holes, sandblasted, painted, 2 pcs/set
Distance plates B: dim.:10x55x210 mm, holes, sandblasted, painted, 2 pcs/set

Special paints

SHL S35

Standard equipment SHL S35

universal front hitch for SELF-INSTALLATION without lateral mounting brackets
professional front hitch suitable for tractors from 120 to 230 hp.
Walterscheid quick hitch hooks Cat. 3L
width Cat.2 on lift arms
robust structure
modern design
top quality – only the highest quality components installed
Mounting – internal width: 515 mm
Mounting – external width: 565 mm
foldable and removable lift arms (transport position)
lift arms are folded backwards
bilaterally fastened suspended lift arms, which can be fixed – floating or fixed position
double-acting hydraulic cylinders
hardened ball joints on both cylinders
all bearings and pivot points can be lubricated
drawbar eye
holder for top link (central lever)
additional holes for connection under the tractor chassis
1200 mm long hydraulic hoses with quick couplings and a shut-off valve in the lifting pipe
Paint RAL 7021(dark grey) or on customer request
Empty weight: 212kg

Additional Equipment SHL S35

Double-acting hydraulic connections front(two hoses with quick couplers integrated in cross-bracket)
Accumulators(damper) -protects the tractor with heavy attachment from shocks by bumps
Universal brackets for self-assembly of the front linkage

Scope of delivery SHL S35

A – universal front hydraulic linkage SHL S35 with Walterscheid quick hitch hooks Cat 3L
B – top link Cat 2
C – original Walterscheid catch balls Cat 3
D – straight screw-on attachments 12-L for hose extension
E – 7-pin aluminium electric socket without wiring
F – two (2) front quick couplings with plastic caps without hydraulic hoses

Sketch SHL S35

Universal brackets

Length L

L = 200 mm
L = 500 mm
L = 750 mm
L = 1000 mm
L = 1200 mm
L = 1400 mm
L = 1600 mm

Distance plates for universal brackets SHL 35

To balance the width of the tractor to the front linkage.

Thicknesses t= 5 and 10 mm
Distance plates A: dim.: 5x81x235 mm, holes, sandblasted, painted, 2 pcs/set
Distance plates B: dim.:10x81x235 mm, holes, sandblasted, painted, 2 pcs/set

Universal front hitch – universal front linkage SHL S

SHL S

Models

SHL S8

Universal brackets

ERO console

Distance plates for universal brackets SHL S8

SHL S17 and S25

Universal brackets

Distance plates for universal brackets SHL S17 and SHL S25

Special paints

SHL S35

Universal brackets

Distance plates for universal brackets SHL 35

Additional Equipment

Walterscheid lower link quick hitch hooks

Double-acting front hydraulic connections front

Lift arms

The hydraulic accumulator (damper)
